ELEMENT22 DRIFT

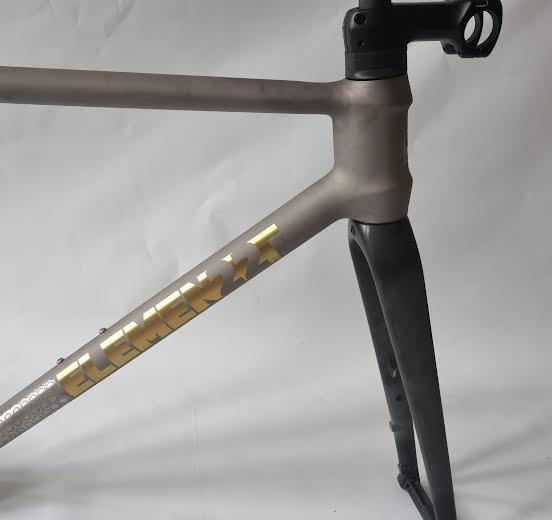

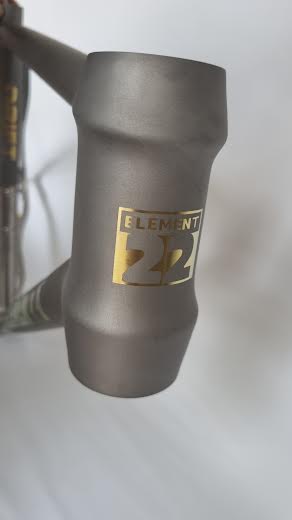

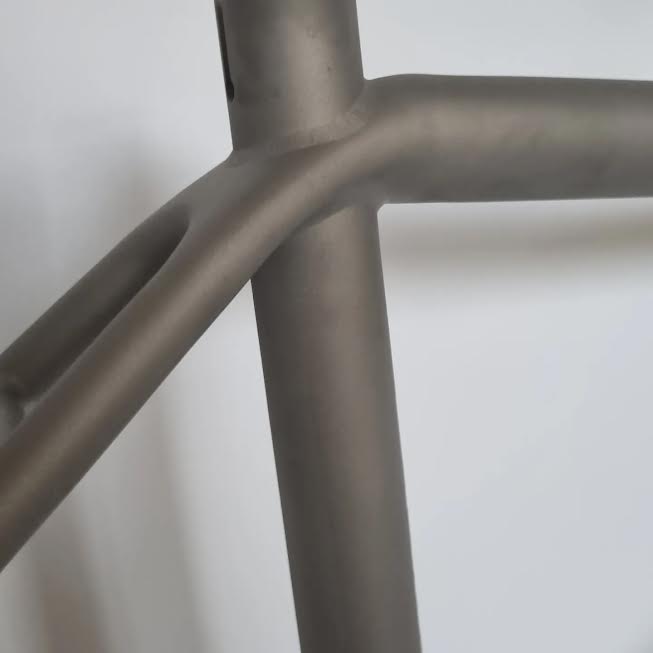

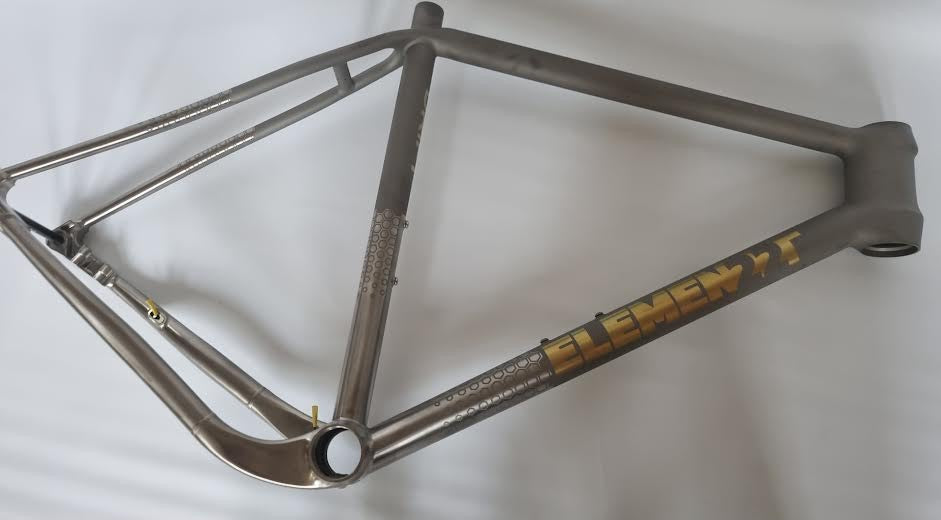

Element22 DRIFT is afast race frameset, beautifully finished in an anodised colour to choose. The frame has a cast head tube for either fully or semi integrated headsets, cast seat tube cluster giving a unique look to this frame, a lovely T47 threaded bottom bracket with a removable cover that gives access to all cables/hoses.

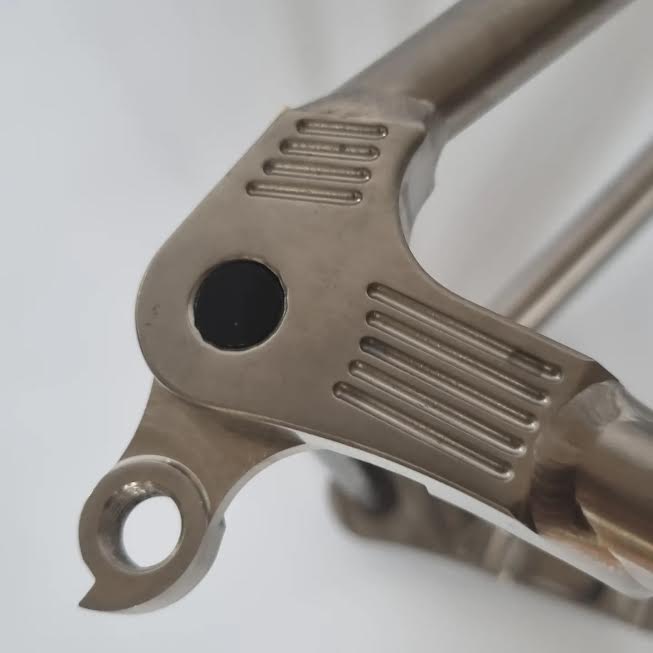

The curved seat tube allows for good tyre clearance for up to 43mm with 700c wheels or 50mm with 650b. The rear wheel is securely held in place with our cast dropouts which incorporates the disc calliper mounts on the left hand side. Sleek lines run from the seat stays along to the top tube, the attention to detail is second to none.

The forks that accompany this stunning frame is full carbon as you would expect with internal routing for the front brake hose, a sleek crown profile and no mounts on the outside, if these are needed you will need out +-5 adjustable ones. Nothing has been overlooked on this frame. its a pure gravel sport frame so there are no guard mounts or rack mounts, if you need these you need to look at the Element22 Duro.

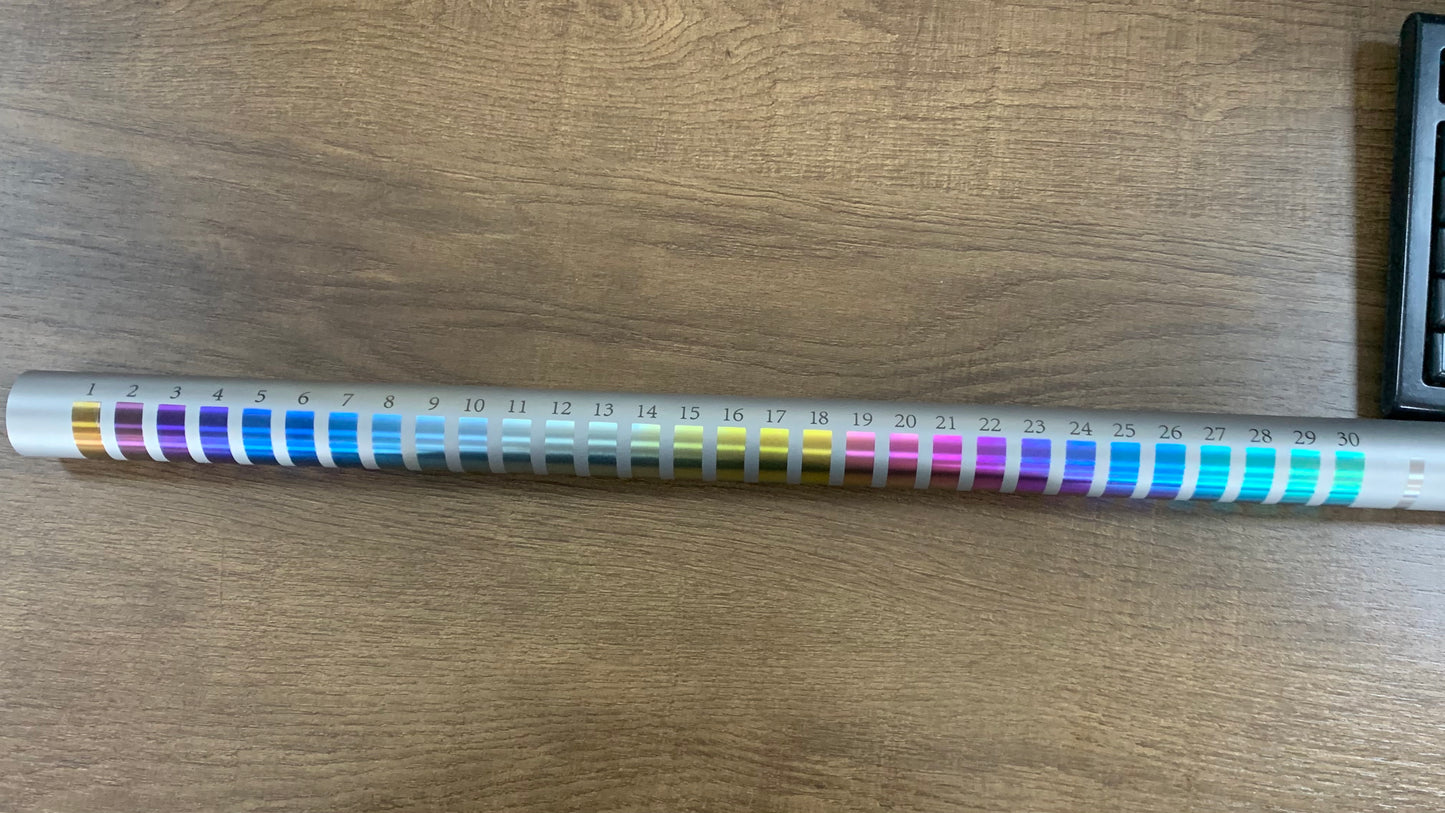

These frames are finished to order and the lead time is 8 weeks. Please let us know if you want the solid or outline hexagons and the frame will be hand finished to your colour and design choice. The lead time for these beautiful frames as they are custom finished is approx 8-10 weeks. We can take a deposit to secure, to do this please email us. There is in the pictures a colour swatch of the colours we can obtain with anodising, if you want to choose your custom colour we can accommodate this.

SIZING CHART

RIDER HEIGHT (METERS)   RIDER HEIGHT (FEET/INCHES)  RECOMMENDED SIZE

1.55 to 1.63                                 5'1'' to 5'4''                                XX SMALL

1.60 to 1.68                                 5'3'' to 5'6''                               X SMALL

1.65 to 1.73                                 5'5'' to 5'8''                               SMALL

1.70 to 1.83                                 5'7'' to 6'0''                               MEDIUM

1.80 to 1.88                                 5'11 to 6'2''                               LARGE

1.85 to 1.93                                 6'1 to 6'4''                                X LARGE
